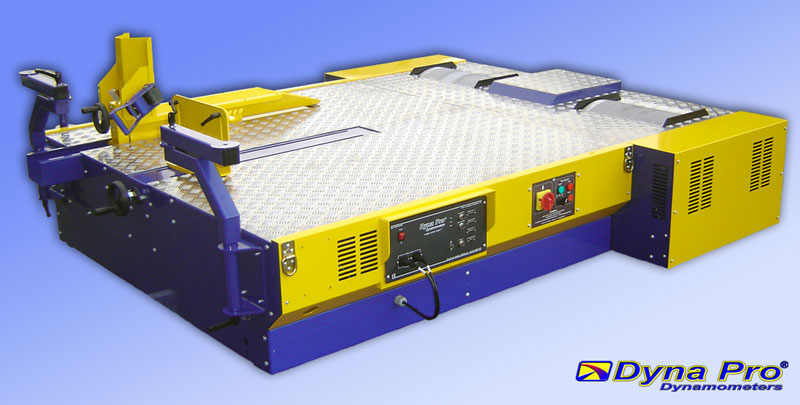

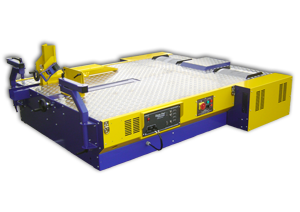

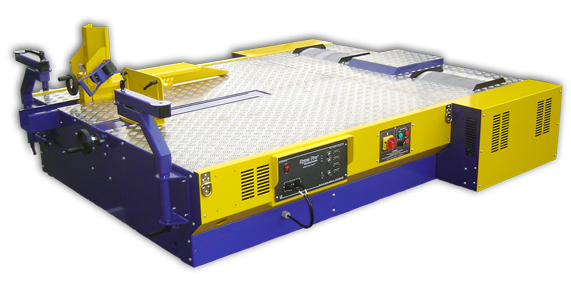

T62-LCC Chassis Dynamometer with Eddy-Brake (Compact)
Show Package Deal £22,890.00 + VAT + Delivery - UK Specification - Including New Dyna Run V4 Software (Windows 10/11)
Complete Dynamometer Systems including: - T62-LCC Eddy Brake Dynamometer
Single Channel Air Fuel Gas
Analyzer, Auto Climate Monitor,
Gas Assisted Loading Ramp, Keyboard/Monitor Arm,
7,000 m³/Hr Twin Cooling Fans, Dyna Run V4 Software and Training.
In addition to the above, all machines come with a 2 Year manufactures warranty, (excluding consumables).
The Dyna Pro T62-LCC is a High Inertia Eddy-Brake Controlled Dynamometer
for testing Motorcycles, Quads and Karts. The compact design ensures
minimum space requirements
and has been developed for the ‘Professional’ engine tuner,
as well as retail shops and service Centre's. All Dyna Pro Dynamometers will provide consistent, repeatable results.
The T62-LCC Chassis Dynamometer, has been developed to enable the user to carry out a more complete range of tests. Full 'Closed Loop' control
of the Eddy-Brake enables a vast range of tests to be made with the minimum of effort. Wind Drag, Sweep and Step Testing and constant loading are just some of the features of the Dyna Pro
T62-LCC. With the LC Dynamometer, inertial acceleration testing can still be performed as with the standard S68
& S125 Inertia only
Dyno’s.
With Dyno Pro's advanced windows software, Dyna Run V4, operating the Dynamometer is simple and user friendly. Software upgrades are released throughout the year, and all Dynamometers come with a day’s training.
‘Seat of the pants’ testing is pure guesswork, a dyno will give you figures fast, and let you know and diagnose exactly what is happening in the heart of the motorcycle being tested. The
Load Controlled range of Eddy-Brake Chassis Dynamometers is a breakthrough in terms of performance for money and all Designed and Manufactured, ‘in house’ by our highly skilled workforce based in Basingstoke, UK.
Inertia Dynamometers will only handle ‘Sweep Acceleration’ testing, where as Load Controlled Dynamometers will handle both ‘Sweep Acceleration (fixed load and Variable load)’ and ‘Static’ testing at any given engine speed or road speed.
All of our Load Controlled chassis dynamometers come as standard with a Hand Controller Pendant, Intelligent Ignition Pick-up System, Starter Motor System including battery and charger, Air Brakes for emergency braking on power failure, 12 additional analogue input channels for custom sensors,
Real-Time Torque measurement of the Eddy Brake, and temperature compensation.
Dyna Pro Dynamometers is so confident of its products, quality and reliability that all of our machines come with a 2 year replacement parts warranty.(excluding consumables)
Standard Hardware Features
- T62-LCC Load Controlled Dynamometer.
- Eddy Brake with Torque Monitor fitted as standard.
- Eddy brake system fully Closed-Loop with Infrared temperature compensation.
- Fast Dynamic Load Control of Eddy Brake (No user PID control, Self learning)
- Calibration Check Weight and Arm.
- Dyna Run V4 Advanced Windows
Software (Windows 10/11).
- Dynamometer to PC USB Link
- Multi Function Remote Hand Controller.
- Intelligent Ignition Pick-up™ system fitted as standard. (Primary and Secondary)
- Starter System fitted as standard (Also used to calibrate Dynamometer).
- Air Brake System (With emergency lock-down in the event of power failure.)
- 12 Auxiliary 0-5 Volt Data Acquisition Inputs, for connection to additional sensors.
- Machine Construction from 3, 5 & 10mm Precision Laser Cut steel, powder coated finish, Blue and Yellow.
- Designed and Manufactured in the UK
- 1 Day Training (at Dyna Pro Works)
- 2 Year replacement parts warranty.(excluding consumables)
Optional Accessories
- Twin Cooling Fans System (High Speed, High Pressure - Operated from Hand Control Pendant). ***
- Wideband Air Fuel System. (Single Channel, Double Channel and Quad channel). ***
- Weather Station (Temperature, Humidity, Pressure and Relative Air Density). ***
- Gas assisted Loading Ramp. ***
- Keyboard Monitor Shelf. ***
- 4 Channel Type K Thermocouple Unit.
- Ram Air simulation System (Calibrated to road speed).
- Infrared Temperature monitor (up to 500ºC).
- Exhaust Extraction Kit.
- Exhaust Arms.
- Carbide Drive Roller Coating.
Items shown '***' above come as standard with the show package deal.
T62-LCC Technical Specification
| T62-LCC Dynamometer Specifications |
| Maximum Power (Dynamic) |
600
h.p |
Vehicle Type |
Bike, Kart, ATV |
| Maximum Power (Static) |
250
h.p |
Loading Type |
Inertia & Eddy Brake |
| Maximum Torque |
500 ft/lb |
Minimum Rear Track |
60.4 cm (23.78") |
| Maximum Rear Wheel Speed |
200 mph |
Maximum Rear Track |
150.0 cm (59.05") |
| Modeled Mass |
262 Kg (576.4
lbs.) |
Speed Encoder System |
Digital |
| Drive Roller Diameter |
45.3 cm (17.83") |
Ignition Pick-up |
Digital (Intelligent Pri, & Sec) |
| Drive Roller Width |
45.0 cm (17.71") |
Data Acquisition System |
Digital High Speed USB |
| Drive Roller Inertia |
13.4 Kg/m² |
Length (Without Ramp) |
270.4 cm (106.46") |
| Drive Roller Surface |
Knurled (Anti-Corrosion Zinc) |
Width |
209.6 cm (82.52") |
| Maximum Bike Length |
239.6 cm (94.33") |
Height
(Deck) |
44.9 cm (17.68") |
| Minimum Bike Length |
120.6 cm (47.48") |
Height
(Overall) |
88.4 cm (34.80") |
| Timing Accuracy |
50
Nano seconds |
Weight
(Un-Crated) |
1200 Kg (2640
lbs.) (Approx.) |
| Speed Accuracy |
0.01 mph |
Supply Voltage |
190 - 240 Volts ac 50/60 Hz |
| RPM Accuracy |
0.1 rpm |
Maximum Supply Current |
28 Amps |
| Calibration |
Factory Calibrated/Check Weights |
Air Consumption |
<1 CFM (120 psi Max) |
T62-LCC Technical Specification Downloads
|
T62-LCC Dynamometer (Compact) |
 |
Specifications (488KB) |
Dimensions (596KB) |
Picture (382KB) |
Model Type:
T62-LCC
Load Type:
Inertia & Eddy Brake
Vehicle Type:
Bike, Kart & ATV |
Specifications subject to change without notice.
